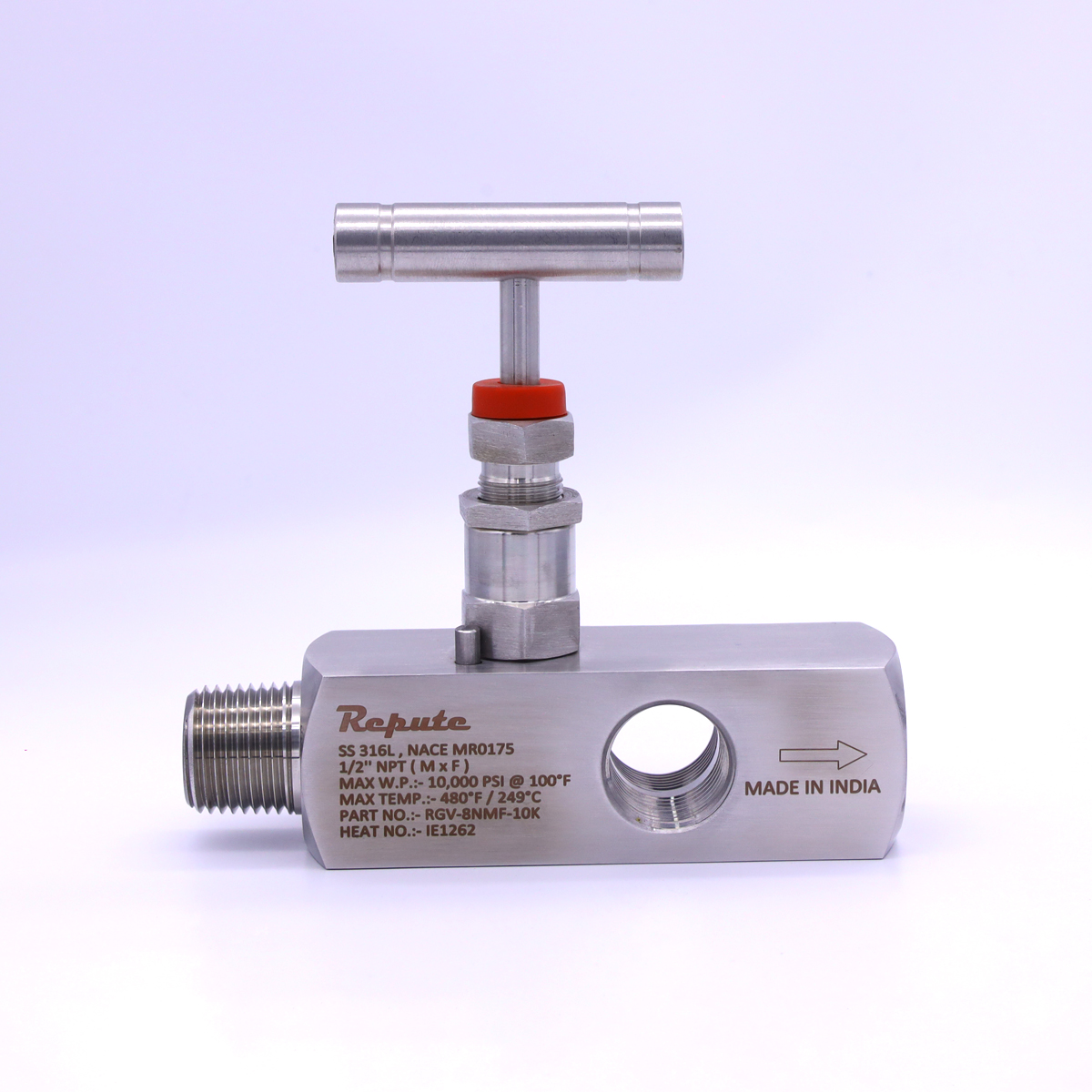

Repute Needle Valves are available in both Metal seat and Soft seat.
Available in Straight type & Angle type Design.
Availabe In Square and Hex Body.
Available in SS 316, Duplex, Super Duplex, Monel, Inconel & Hastelloy Materials.
Available end connections – Male & Female NPT, BSPP, BSPT, tube end connection.
Maximum working pressure up to 10,000 psig. (690 bar).
Size ranging from 1/8″ to 1”.
Available in different Packing material such as PTFE,Graphoil.
Availabe in Standard Non-Rotating tip & Ball tip on request.
100% Hydro Shell test is performed at 1.5 times of working / rated pressure.
100% Hydro Seat test is performed at 1.1 times of working / rated pressure.
100% Pneumatic seat tested is performed.
All Valves are Factory Tested & Certified with unique valve serial number.
NACE certification available upon request.
Heat code traceability.
